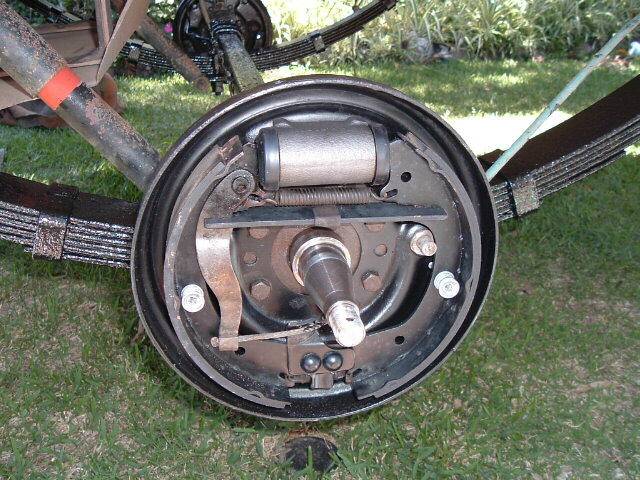

hydraulic drum brakes





EXPLODED VIEW OF RIGHT HAND SIDE & PARTS LIST



     Please refer to your camper trailer manufacturers manual for specific maintenance advice.

Always think safety first & never climb under your camper trailer while supported on stands alone.





1 backplate assembly                                                  9 bleed screw                                                             7 lock nut

2 lined shoe                                                                 10 dust cover                                                             18 pin

3 wheel cylinder body                                                11 set screw                                                               19 cup washer

4 spring (piston return)                                             12 washer                                                                   20 spring (shoe hold down)

5 air excluder                                                              13 strut                                                                        21 spring (abutment end)

6 cup seal                                                                     14 shoe return spring (wheel cylinder end)           22 hand brake lever

7 piston                                                                         15 cam                                                                         23 pin

8 dust cover                                                                 16 springer washer                                                    24 spring plate

                                                                                                                                                                             25 retaining plate



info by Rob
